REGUPOL solar solid

A PV system on waterproofing systems

REGUPOL solar solid

A PV system on waterproofing systems

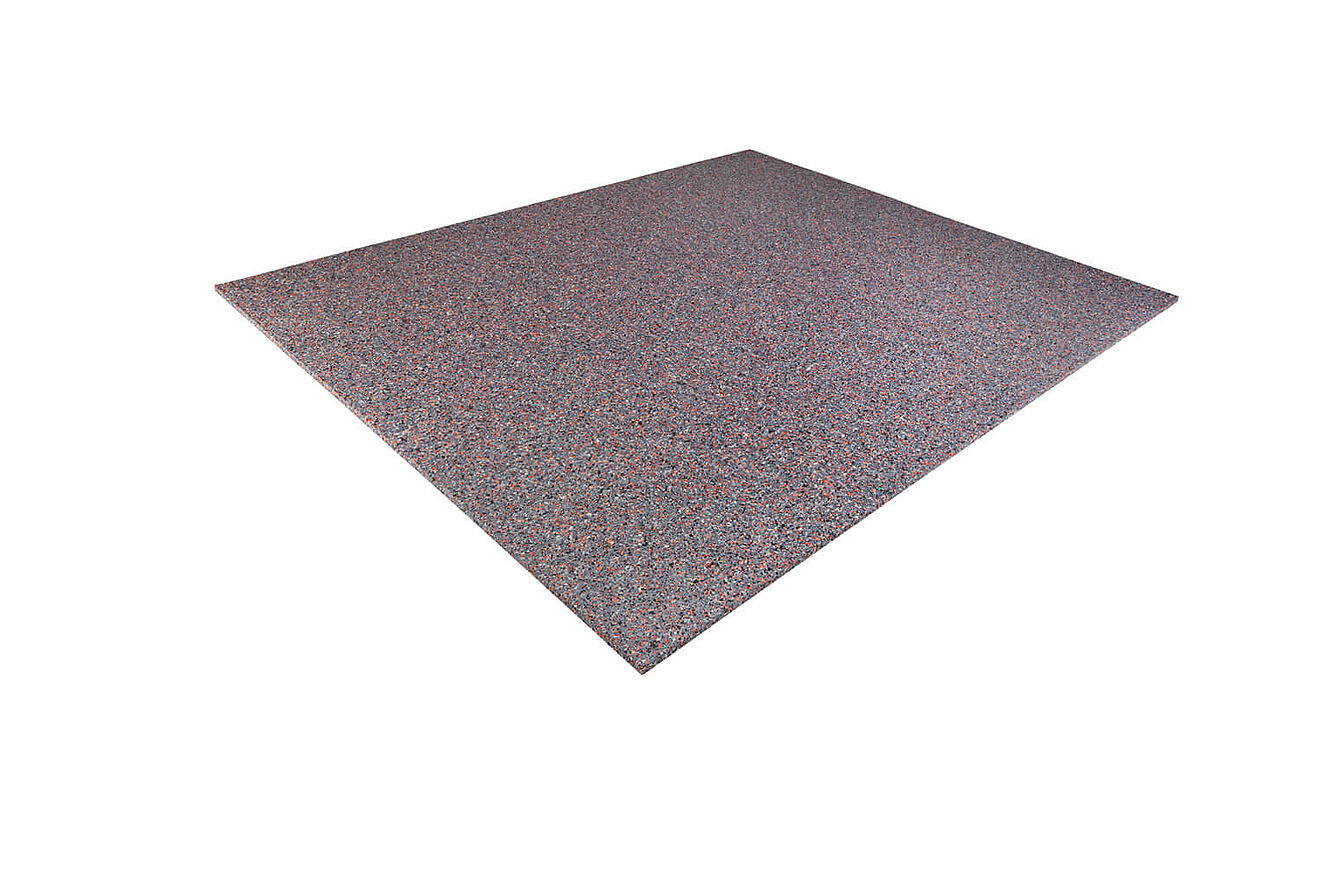

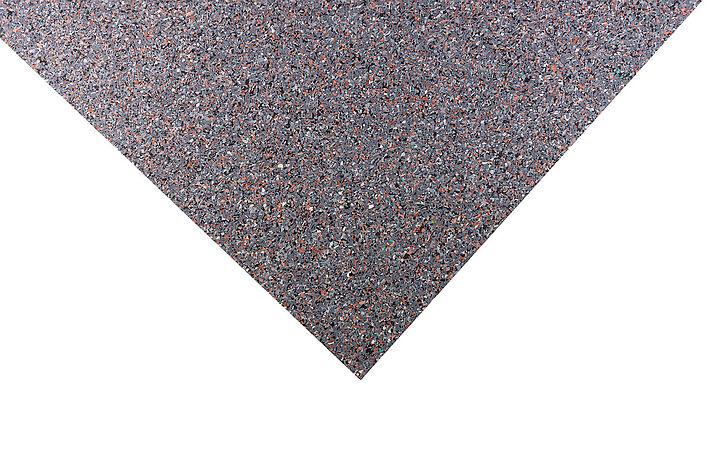

REGUPOL solar solid is a rubber free, highly compressed and highly resilient protection layer according to DIN 18531 for special requirements and on non-rubber-compatible sealing systems. Specially designed for your installation of PV systems on flat roofs.

REGUPOL solar solid represents a highly compacted and highly resilient protective layer specifically for the installation of photovoltaic and solar systems on flat roofs. This alternative for special requirements is made of PUR-bonded butyl rubber and is a protective layer designed according to DIN 18531 and the Flat Roof Guidelines. The protective layer guarantees the secure positioning of solar systems due to high coefficients of friction and simultaneously protects the roof waterproofing from damage. REGUPOL solar solid can be designed to match the mounting system and is individually customisable. The material is pressure-resistant, permanently elastic, resistant to ageing, water-permeable and vapour-permeable. It consists of up to 95 percent PUR-bonded, recovered and recycled butyl rubber granules and is thus a prime example of a circular economy and upcycling.


REGUPOL solar solid
Cradle to Cradle Certified® Bronze
EPD

Features


  • Protective layer according to DIN 18531 and the Flat Roof Guidelines
  • Consists of up to 95 percent PUR-bonded rubber granules
  • Thicknesses and dimensions depending on the substructure or mounting system
  • Height-compensating, highly compacted, highly resilient, resistant to microbes, pressure and temperature, permanently elastic, resistant to ageing, vapour-permeable, water-permeable, rot-proof
  • Largely resistant to acids and alkalis
  • Increases the static friction
  • Antistatic according to EN 1815
  • Simple and efficient installation

Stock


10,000 x 1,250 x 6 mm

11 individual pieces on a pallet

8,000 x 1,250 x 8 mm

11 individual pieces on a pallet

6,000 x 1,250 x 10 mm

11 individual pieces on a pallet
